Flat Power Lithium Battery Cell 803450 3.7v 1500mAh 5.55wh Rechargeable Lipo Polymer Battery Pack

Markenbezeichnung:	RESKY
Modellnummer:	LP803450
MOQ:	10pcs
Preis:	Verhandlungsfähig
Verpackungsdetails:	Papierbox
Zahlungsbedingungen:	Western Union, t/t

Einzelheiten

Beschreibung des Produkts

Bewertungen & Rezensionen

Einzelheiten

Herkunftsort:

China

Zertifizierung:

CE, RoHS, MSDS, Un38.3, IEC62133,ect

Dokument:

LP103450 2000mAh with norma...28.pdf

Nennkapazität:

1500mah

Aufladungsstrom:

0,2C

Max Discharging Current:

Gewicht:

15g

Mindestbestellmenge:

10pcs

Zyklusleben:

500 Cycles

Garantie:

12 Monate

Versand:

DHL, FedEx, Tnt, nach Luft, auf See

Elektrolyt:

Li (Nicomn) O2

Spezifikation:

8*34*50 mm

Versorgungsmaterial-Fähigkeit:

50000pcs/Tag

Hervorheben:

Flat Power Lithium Battery 803450

3.7v 1500mAh Lipo Battery

Rechargeable Polymer Battery Pack

Beschreibung des Produkts

Flat Power Lithium Battery Cell 803450 3.7v 1500mAh 5.55wh Rechargeable Lipo Polymer Battery Pack

High-performance flat lithium polymer battery cell designed for various portable electronic applications.

Product Attributes

Nominal Capacity	1500mAh
Charging Current	0.2c
Max Discharging Current	1c
Weight	15g
MOQ	10PCS
Cycle Life	500cycles
Warranty	12months
Shipping	DHL, FedEx, TNT, by Air, by Sea
Electrolyte	Li(Nicomn)O2
Specification	83450mm

Technical Specifications

Batteries	3.7v 1500mah lipo battery
Charge voltage	4.2V
Nominal voltage	3.7V
Nominal capacity	1500mAh 0.2C Discharge
Charge current	Standard Charging:0.5C Rapid charge: 1.0C
Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
Max.charge current	1.0C
Max.discharge current	1.0C
Discharge cut-off voltage	2.5V0.25V(0.2C)
Operating temperature	Charging: 0°C ~45°C Discharging:0°C ~45°C
Storage temperature	-10°C~ +45°C
Dimension	Length:50±0.5mm (not including tabs) Width: 34±0.5mm Thickness:8±0.2mm
Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
cycle time	≥500times

Battery Type Comparison

Ternary Lithium Polymer Cells: Pursuing a Balance Between Thinness and Long Battery Life

Core Advantages: High energy density; smaller size and lighter weight for the same capacity; excellent low-temperature performance; flexible discharge rate
Main Disadvantages: Less safe than lithium iron phosphate batteries; shorter cycle life; higher cost
Typical Applications: Smart wearables, mobile phones, laptops, drones, high-end portable digital devices

Lithium Iron Phosphate Polymer Cells: Prioritizing Safety and Durability

Core Advantages: High safety; longer cycle life; stable raw material prices; lower self-discharge rate
Main Disadvantages: Lower energy density; poor low-temperature performance; requires additional power management circuitry
Typical Applications: Outdoor equipment, backup power supplies, industrial instruments, smart home devices

Main Applications

Smart Wearable Devices: Small smart bracelets, slim smartwatches, fitness trackers
Small Digital Audio-Visual Devices: Mini Bluetooth speakers, wireless Bluetooth earphone charging cases
Portable Medical Devices: Small pulse oximeters, fingertip blood glucose meters, mini massagers
Smart Home and IoT Terminals: Wireless door and window sensors, mini surveillance cameras
Outdoor Small Equipment: Mini headlamp, small GPS tracker, portable walkie-talkie
Mobile Terminal Accessories: Small mobile phone battery case, wireless charger with built-in battery

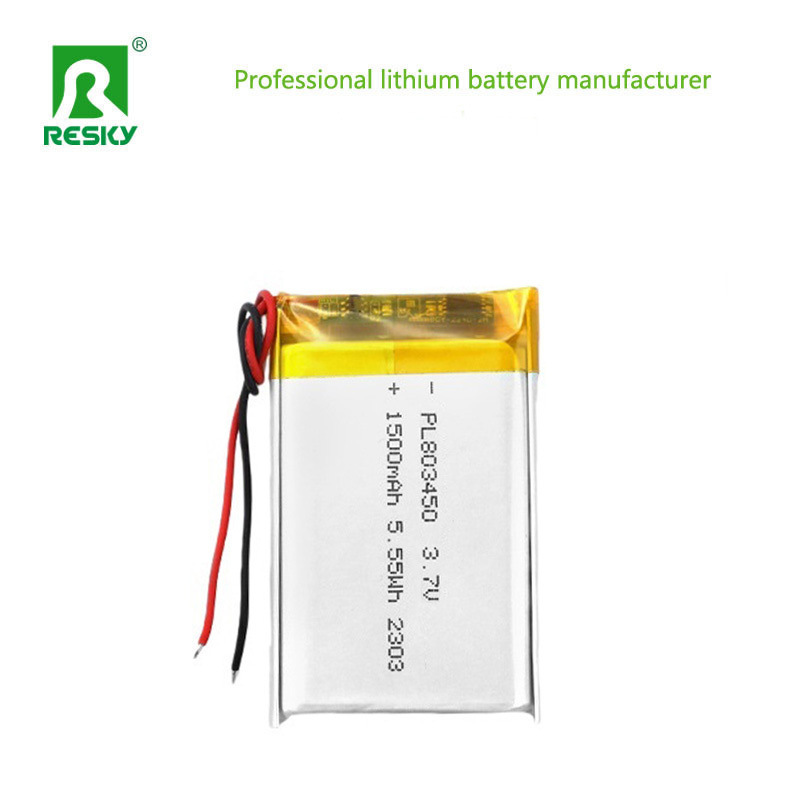

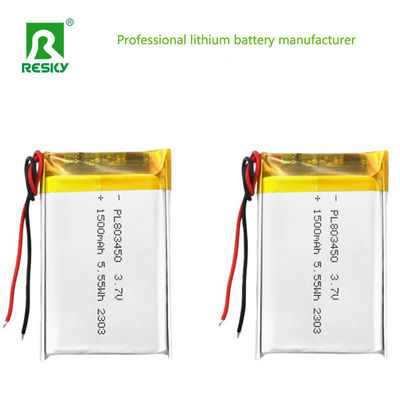

Product Images
