Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Rechargeable Lipo Battery Pack

Markenbezeichnung:	RESKY
Modellnummer:	LP604050
MOQ:	10pcs
Preis:	Verhandlungsfähig
Verpackungsdetails:	Papierkiste
Zahlungsbedingungen:	T/T, Western Union

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

CHINA

Zertifizierung:

CE, RoHS, MSDS, Un38.3, IEC62133

Nennkapazität:

1500mah

Gewicht:

Zyklusleben:

500 Cycles

Garantie:

12 Monate

Versand:

DHL, FedEx, Tnt, nach Luft, auf See

Farbe:

Silber, Blue Pvc

Elektrolyt:

Li (Nicomn) O2

Spezifikation:

6*40*50 mm

HS -Code:

8507600090

Versorgungsmaterial-Fähigkeit:

100000 Prozent/Tag

Versorgungsmaterial-Fähigkeit:

50000pcs/Tag

Beschreibung des Produkts

Product Description

Lithium Polymer Battery Cell 604050 3.7v 1500mAh 5.55wh Rechargeable Lipo Battery Pack

NO.	Items	Specifications
1	batteries	3.7v 1500mah lipo battery
2	Charge voltage	4.2V
3	Nominal voltage	3.7V
4	Nominal capacity	1500mAh 0.2C Discharge
5	Charge current	Standard Charging:0.5C Rapid charge: 1.0C
6	Standard Charging method	0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
7	Charging time	Standard Charging:2.75hours(Ref.) Rapid charge: 2hours(Ref.)
8	Max.charge current	1.0C
9	Max.discharge current	1.0C
10	Discharge cut-off voltage	2.5V 0.25V(0.2C)
11	Operating temperature	Charging: 0 °C ~45 °C Discharging:0 °C ~45 °C
12	Storage temperature	-10°C~ +45 °C
13	Dimension	Length: 50±2mm (not including tabs) Width:40±0.5mm Thickness:6±0.2mm
14	Drop Test	The cell is to be dropped from a height of meter twice onto concrete ground. No fire, no leakage
15	cycle time	≥500times

Product features:

Dimensions and Weight:
‌External Dimensions‌: 60.0mm (L) × 40.0mm (W) × 50.5mm (H), compact and suitable for embedded devices. ‌
‌
Battery Weight‌: Approximately 15g, lightweight design suitable for portable devices. ‌

Voltage and Capacity:
‌
Nominal Voltage‌: 3.7V, in line with the voltage standards of mainstream consumer electronic devices. ‌

‌Nominal Capacity‌: 1500mAh, medium-capacity design, sufficient for daily battery life in most small devices. ‌

Thin and Lightweight Design:

‌Utilizing a solid or gel polymer electrolyte and a soft-pack aluminum-plastic film package, the battery can be as thin as 0.5mm, weighing 20% less than liquid lithium batteries. It is suitable for size-sensitive applications such as wearable devices and drones. ‌

High Safety:
‌Equipped with overcharge and over-discharge protection, it passed the short-circuit needle penetration test without combustion or explosion, and performed stably. ‌

Flexible Form Factor:

Supports bendable design, with a maximum bend of approximately 90 degrees. It can also be customized into various shapes (such as cylindrical and flat) to accommodate complex product designs. ‌

Long Cycle Life:

Under optimized operating conditions (85% depth of discharge), the battery boasts a cycle life of up to 5,000 cycles, far exceeding that of traditional nickel-metal hydride batteries.

Application:

Wireless Communication Equipment:
Suitable for communication devices such as wireless landlines and intercoms, providing stable power supply.

Navigation and Smart Devices:
Commonly used in smart terminals such as electronic navigation systems, Bluetooth speakers, and thermometers, ensuring long-term device operation.

Consumer Electronics:
Includes beauty devices, medical equipment, shavers, fingerprint locks, and more, covering everyday consumer electronics scenarios.
Industrial and Security Equipment
Suitable for industrial instruments, industrial automation equipment, security monitoring equipment, and other applications requiring high battery life and stability.

Toys and Models:
RC models are suitable for small electronic products such as wireless remote-controlled toys and model equipment.

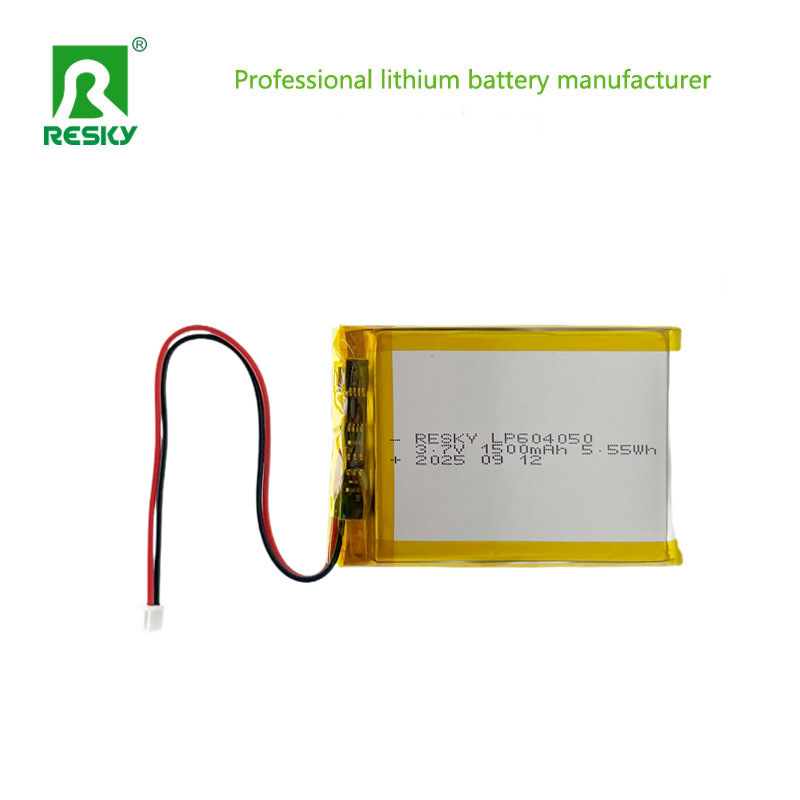

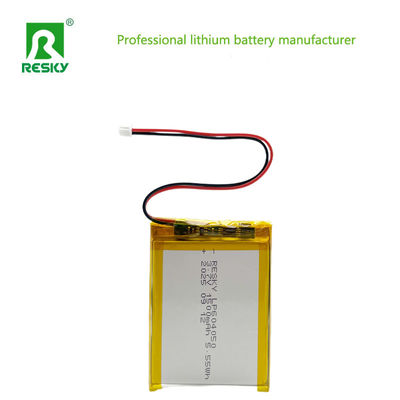

Product Picures:
